Matplotlib.axis.axis.set_pickradius()

matplotlib库的Axis模块中的Axis.set_pickradius()函数用于设置选择器使用的轴的深度

语法:Axis.set_pickradius(self, pickradius)

参数:该方法接受以下参数。

• pickradius:这个参数是float。

返回值:该方法不返回任何值。

下面的例子演示了matplotlib.axis.axis.set_pickradius()函数在matplotlib.axis中的作用:

示例1

# Implementation of matplotlib function
from matplotlib.axis import Axis
import numpy as np
import matplotlib.pyplot as plt

X = np.random.rand(10, 200)
xs = np.mean(X, axis = 1)
ys = np.std(X, axis = 1)

fig = plt.figure()
ax = fig.add_subplot(111)
line, = ax.plot(xs, ys, 'go-')

ax.grid()

ax.yaxis.set_pickradius(-3)
ax.xaxis.set_pickradius(3)

fig.suptitle("""matplotlib.axis.Axis.set_pickradius()
function Example\n""", fontweight ="bold")

plt.show()

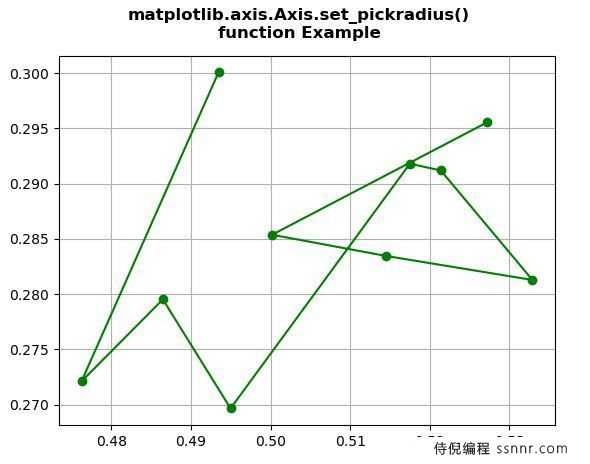

输出:

示例2

# Implementation of matplotlib function
from matplotlib.axis import Axis
import numpy as np
np.random.seed(19680801)
import matplotlib.pyplot as plt

volume = np.random.rayleigh(27, size = 100)
amount = np.random.poisson(7, size = 100)
ranking = np.random.normal(size = 100)
price = np.random.uniform(1, 7, size = 100)

fig, ax = plt.subplots()

scatter = ax.scatter(volume * 2,
                     amount**3,
                     c = ranking,
                     s = price**3,
                     vmin = -3,
                     vmax = 3,
                     cmap ="Spectral")
ax.yaxis.set_pickradius(25)
ax.xaxis.set_pickradius(5)
ax.grid()

fig.suptitle("""matplotlib.axis.Axis.set_pickradius()
function Example\n""", fontweight ="bold")

plt.show()

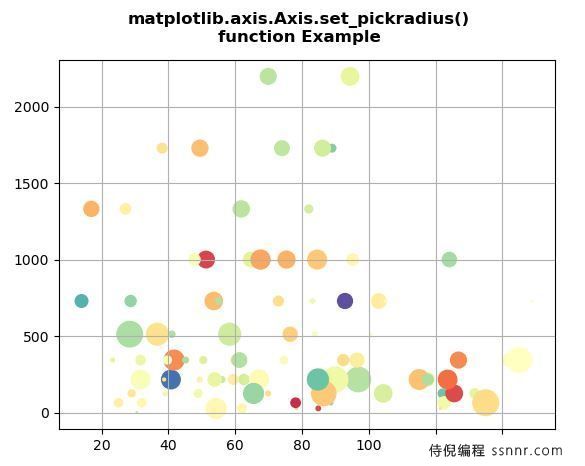

输出:
